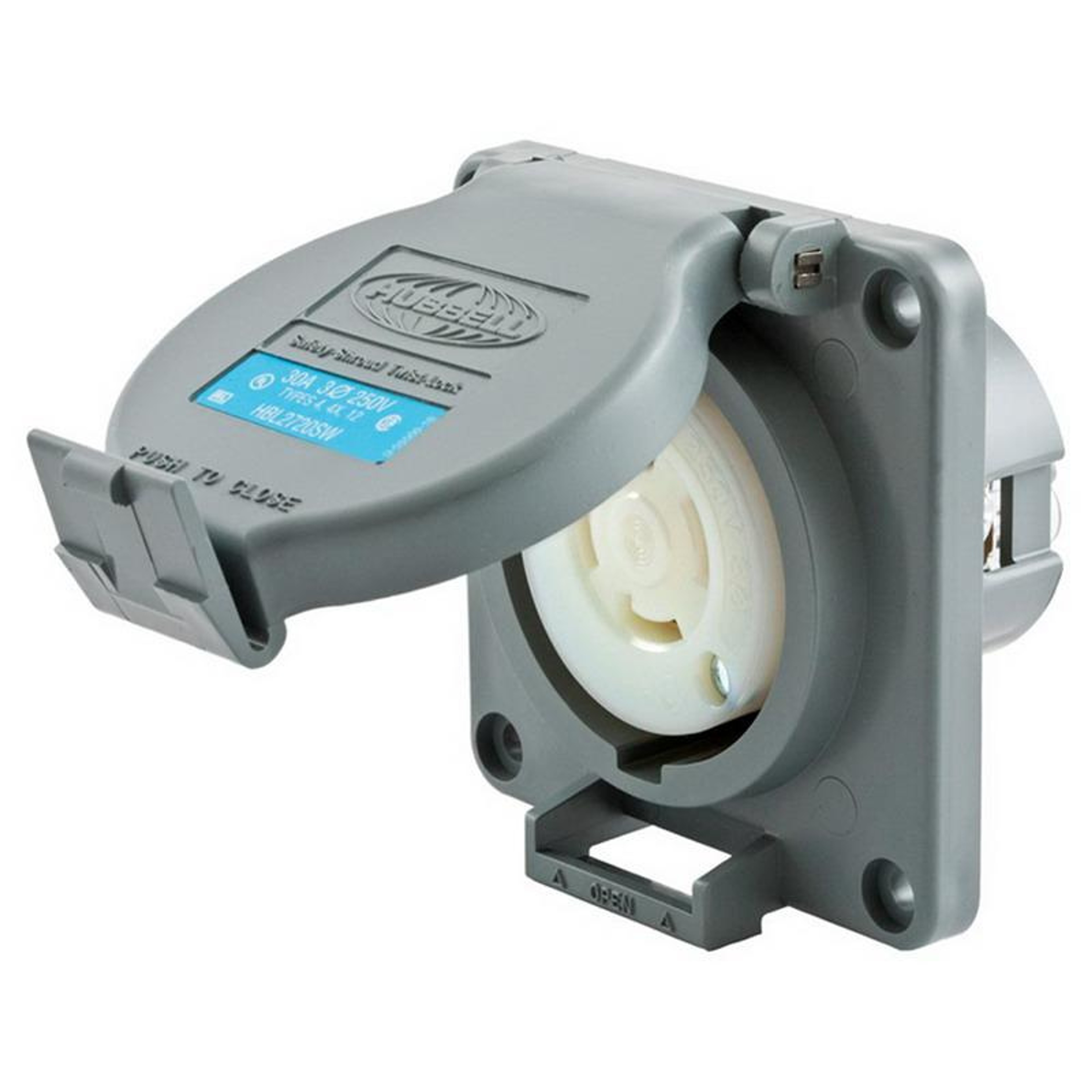

74 HBL2720SW Screw Mount Watertight Single Receptacle 30-Amp 250-Volt AC 3-Phase NEMA L15-30R Gray Safety-Shroud® Twist-Lock®

74 Safety-Shroud® Twist-Lock® 3-Pole 4-Wire Water-tight single receptacle in gray color, has current rating of 30-Amps and voltage rating of 250-Volt AC. This receptacle with screw terminal connection, accommodates solid or stranded copper wire of size 16 - 8-AWG. It features brass construction for longer endurance. This receptacle has L15-30R configuration. Screw mountable receptacle has power rating of 3 hp and withstands dielectric voltage of 2000-Volts. It measures 3.75-Inch x 3.75-Inch x 2.69-Inch.

Receptacle withstands temperature range of -40 to 75 deg C. It comes with clear polycarbonate terminal retainer, natural white nylon body contact carrier, steel zinc-plated drive screws, stainless steel lift-cover spring and pin. Receptacle featuring high-impact thermoplastic housing, is perfect for heavy-duty industrial applications. Single receptacle is UL listed, CSA certified and meets Federal specification.
